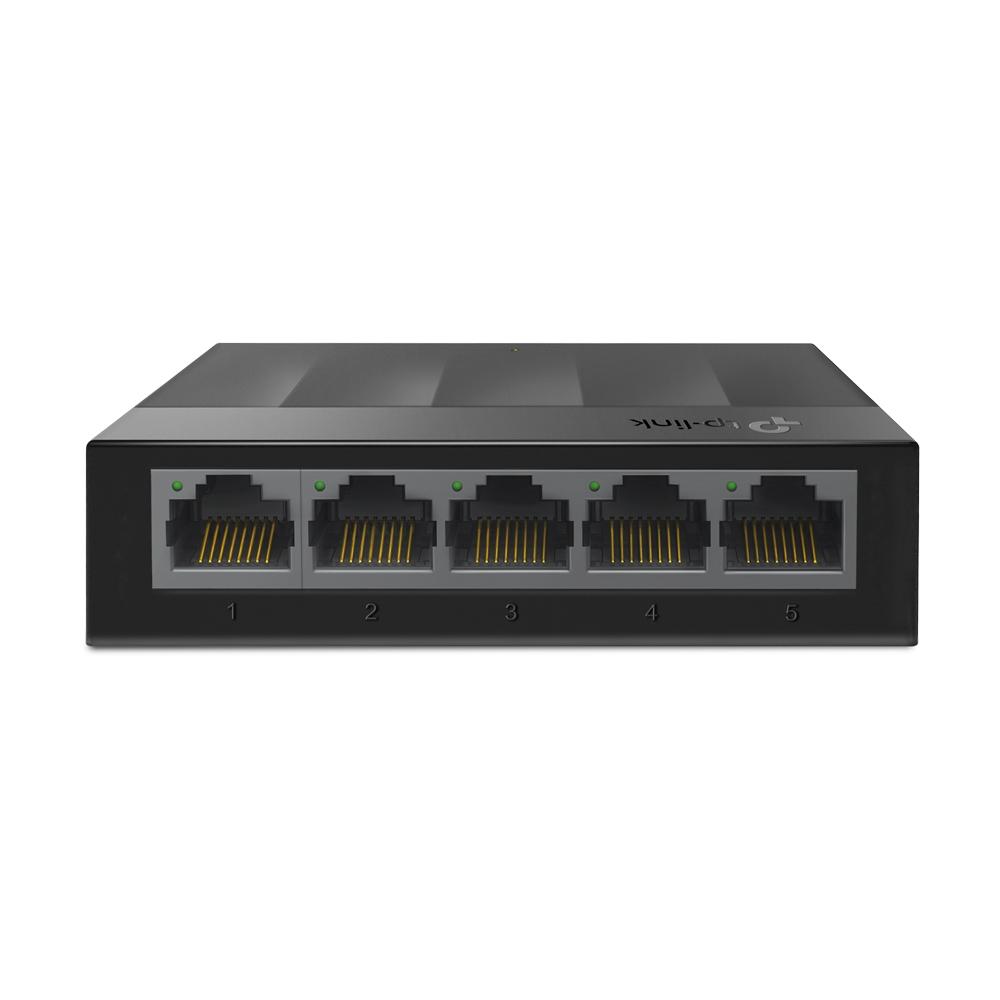

TP-Link LS1005G 5-Port Gigabit Desktop Network Switch 10/100/1000Mbps Plug & Play
SKU: 613Expand your wired network with high-speed Gigabit performance using the TP-Link LS1005G 5-Port Gigabit Desktop Switch. Part of the TP-Link LiteWave Series, this unmanaged switch features five 10/100/1000Mbps Gigabit Ethernet ports, making it ideal for connecting PCs, gaming consoles, NAS devices, smart TVs, IP cameras and other network devices.
With plug-and-play installation, there's no software or configuration required—simply connect your devices and enjoy fast, reliable networking. The fanless design ensures completely silent operation, while Green Ethernet technology intelligently reduces power consumption based on cable length and connection status, helping lower energy costs without sacrificing performance.
Choose Pay & Collect to pay now with PayPal, or Reserve & Pay In Store to pay by cash or card on collection at our Rochdale store. Collection must be made within 7 days.
Features

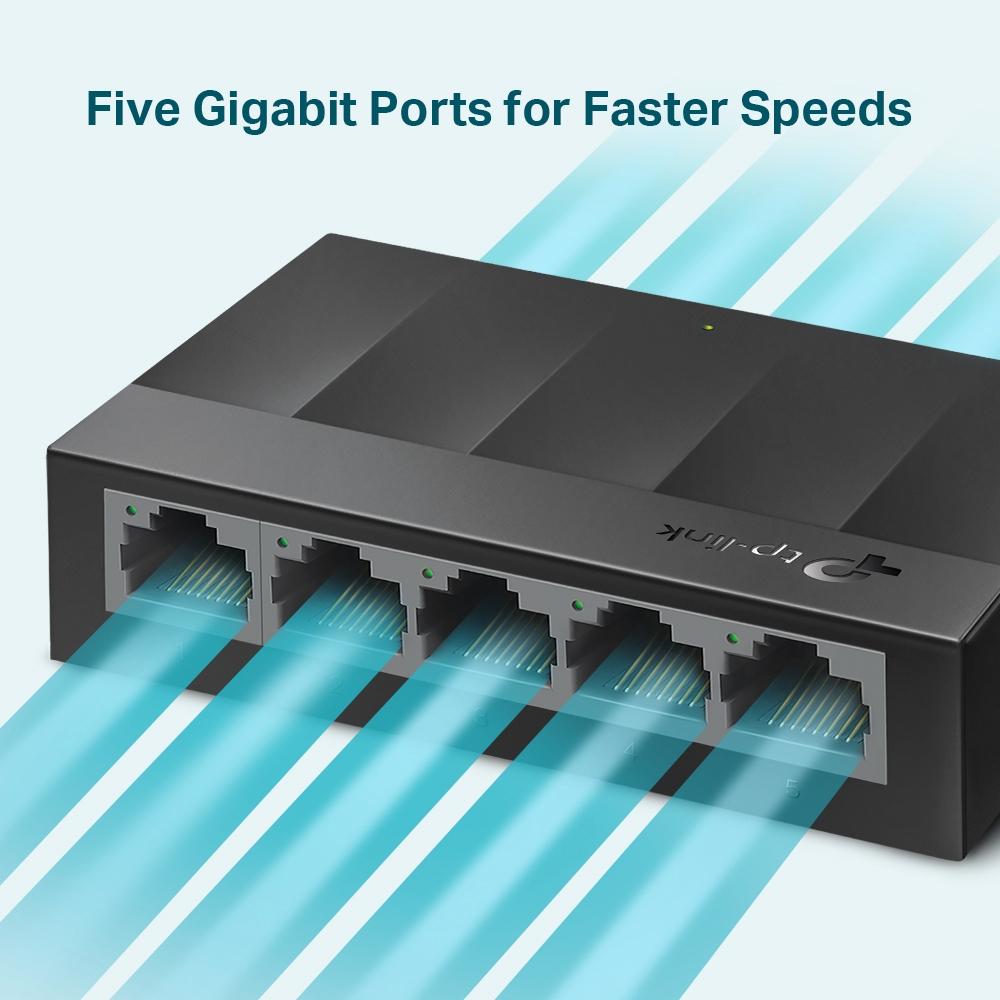

- 5 × Gigabit Ethernet Ports (10/100/1000Mbps)
- Plug & Play – No Configuration Required
- Auto-Negotiation & Auto MDI/MDIX
- 10Gbps Switching Capacity

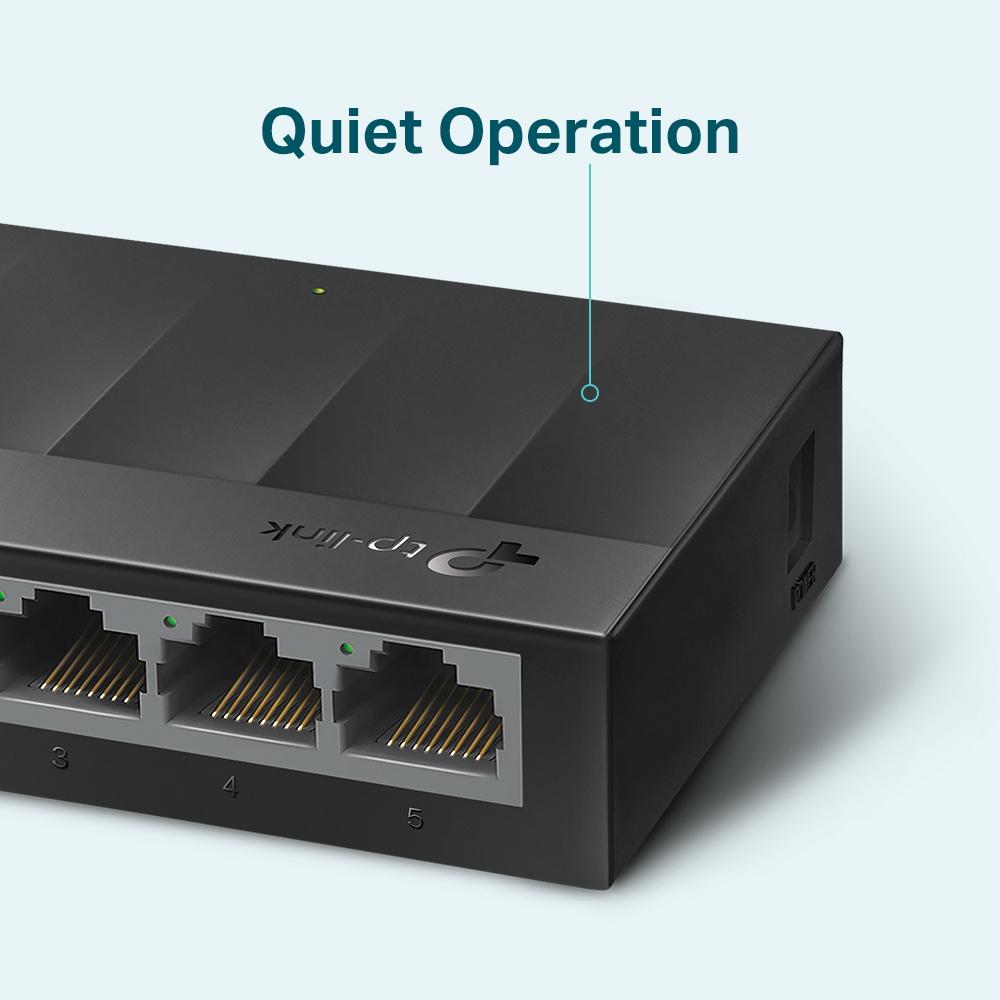

- Silent Fanless Design

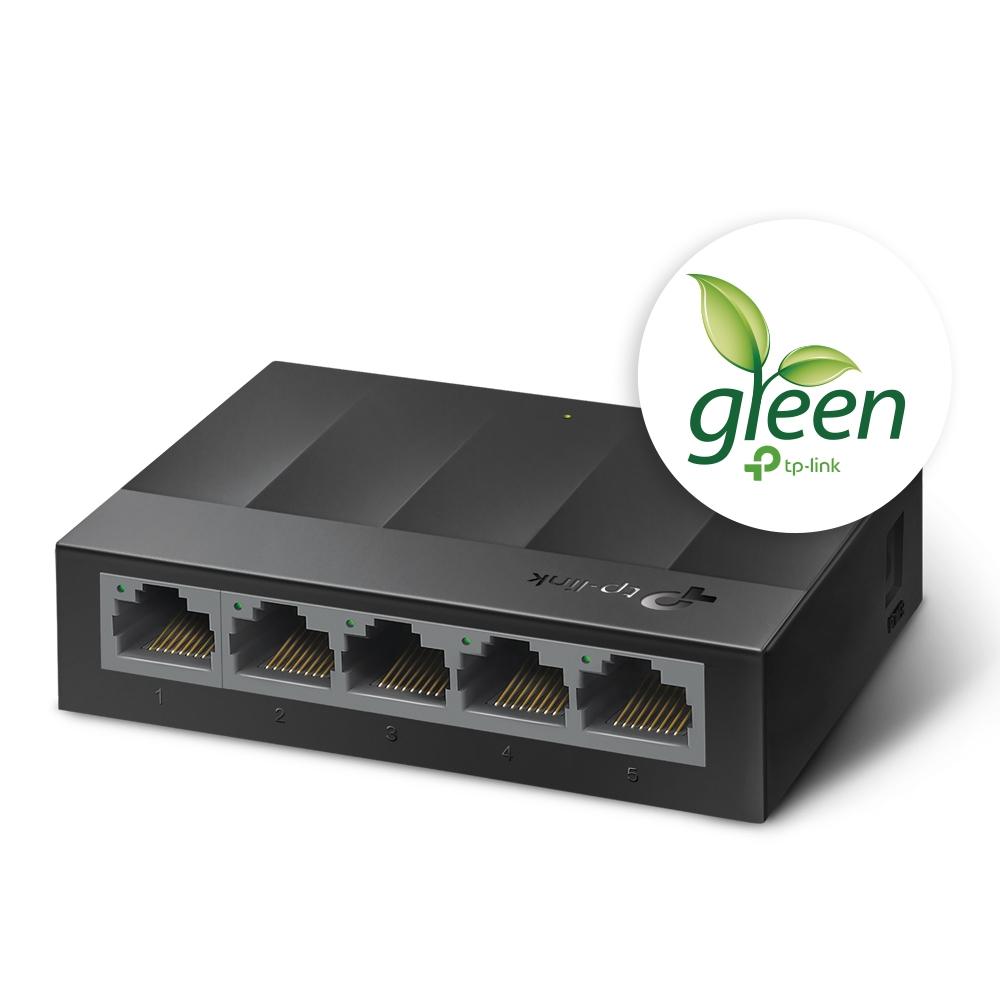

- Green Ethernet Energy Saving Technology
- Desktop or Wall Mount Installation
- Store-and-Forward Switching
- IEEE 802.3X Flow Control
- Perfect for Home, Gaming & Small Business Networks
Specifications
General
- Brand: TP-Link
- Series: LiteWave
- Model Number: LS1005G
- EAN: 6935364085506
- Product Type: Unmanaged Gigabit Ethernet Switch
Network
- Ports: 5 × 10/100/1000Mbps RJ45
- Port Features: Auto-Negotiation & Auto MDI/MDIX
- Network Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Switching Capacity: 10Gbps
- Packet Forwarding Rate: 7.4Mpps
- MAC Address Table: 2K
- Packet Buffer Memory: 1.5Mb
- Jumbo Frame Support: 16KB
- Transmission Method: Store-and-Forward
Power
- Power Supply: External 5V DC / 0.6A Adapter
- Maximum Power Consumption: 3.7W
- Maximum Heat Dissipation: 12.617 BTU/h
Design
- Housing: Plastic
- Installation: Desktop or Wall Mount
- Cooling: Fanless
Dimensions
- Size: 90 × 72 × 23mm
Operating Environment
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10%–90% RH (Non-Condensing)
- Storage Humidity: 5%–90% RH (Non-Condensing)
Certifications
- CE
- FCC
- RoHS
Package Contents

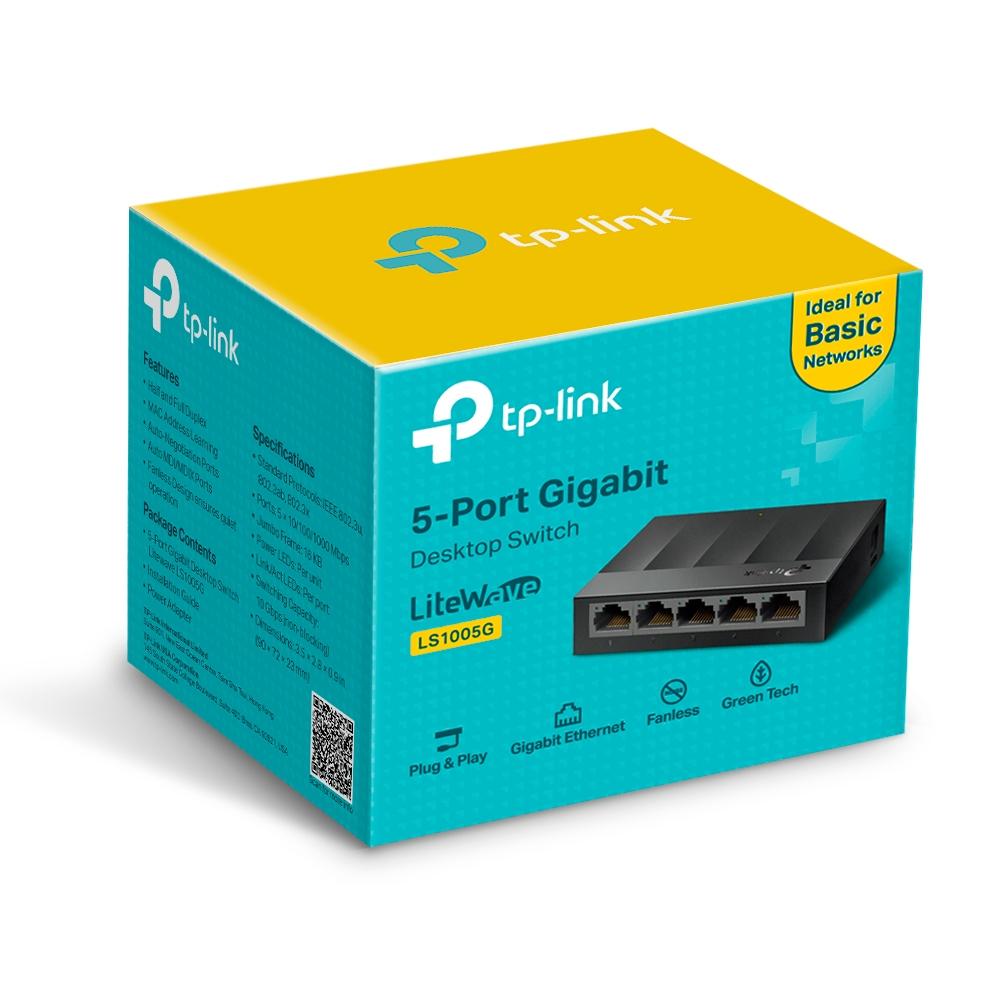

- TP-Link LS1005G 5-Port Gigabit Desktop Switch
- Power Adapter
- Installation Guide
